CCS-720XPM/XDM Switches

The CCS-720XPM/XDM series delivers wirespeed connectivity for all campus user workloads under the management and monitoring of Arista cognitive campus services, supporting MACsec on all ports and offering flexible connection options.

Request Pricing View Datasheet

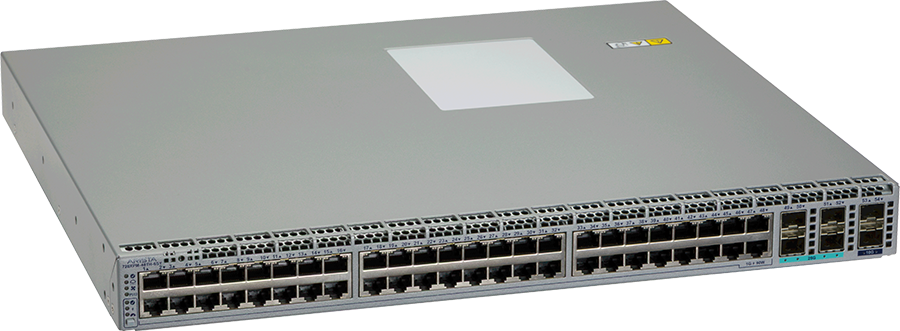

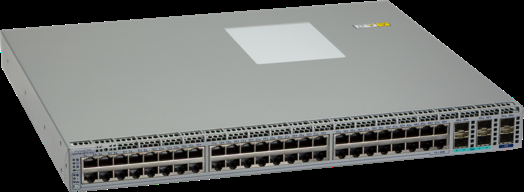

CCS-720XPM/XDM Series PoE and non-PoE Switches

Designed for the demands of the interconnected IoT enabled campus, the CCS-720XPM/XDM series delivers wirespeed connectivity for all campus user workloads under the management and monitoring of Arista cognitive campus services. The Arista Cognitive Campus CCS-720XPM/XDM series switches can support MACsec on all ports. The CCS-720XPM offers a variety of connection options for user desktops, PoE appliances and IoT devices. Managed 802.3af/at/bt power services deliver up to 90W per RJ45 port and speeds ranging from 10Mbps to 1Gbps. A choice of 25G and 10G uplinks enable 100Mbps to 25Gbps deliver network design flexibility and scalability.

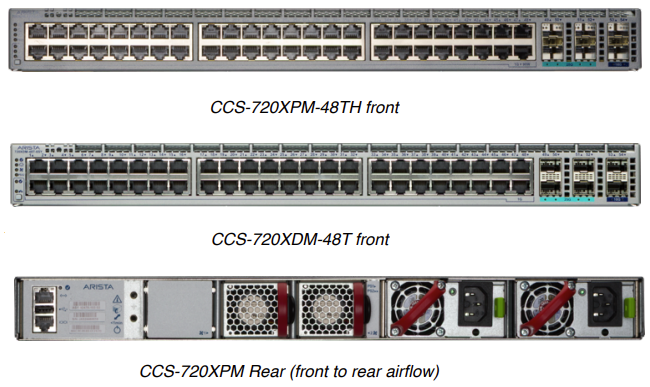

CCS-720XPM/XDM Series PoE and non-PoE Switches overview

Features and Benefits

The capabilities that set CCS-720XPM/XDM Series PoE and non-PoE Switches apart.

Product Highlights

720XPM-48TH-6SY

  • 48 x 10M-1GbE RJ45 @ 90W
  • Uplinks: 4x 25G, 2 x10G
  • MACsec (256-bit) support with downlink and uplink ports

720XDM-48T-6SY

  • 48 x 10M-1GbE RJ45 (non-PoE)
  • Uplinks: 4x 25G, 2 x10G
  • MACsec (256-bit) support with downlink and uplink ports

Cognitive Campus

Cognitive Management Plane (CMP)

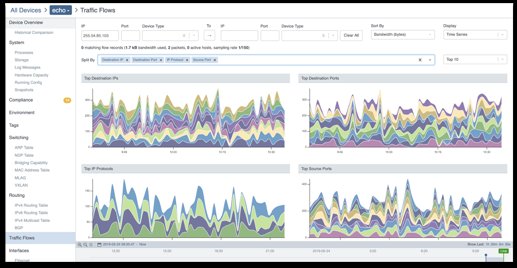

The Cognitive Management Plane (CMP) in Arista’s EOS provides rich control and telemetry APIs used to simplify and automate the deployment, and maintenance of campus infrastructure while also providing real-time monitoring of campus users, applications and devices. As with all Arista platforms, EOS supports auto provisioning by way of Arista Zero Touch Provisioning (ZTP) to simplify device administration through CloudVision, or popular DevOps toolsets. In addition to legacy polling management, EOS CMP delivers real time telemetry to administrators using open gRPC/gNMI APIs used in OpenConfig, allowing administrators to create custom management tools.
View all features in the datasheet

Talk to an Arista networking specialist

Get pre-sales help sizing and configuring CCS-720XPM/XDM Series PoE and non-PoE Switches for your network — from leaf/spine design to EOS and CloudVision integration.

Talk to a specialist

Technical Specifications

Hardware and software metrics extracted directly from the official Arista datasheet.

  • Ingress / Egress Security ACL
    2K / 1K
  • MAC addresses
    64K
  • IPv4/v6 Hosts
    32K / 16K
  • IPv4/v6 Routes
    16K / 6K
  • ECMP
    64-way
  • STP Instances
    64 (MST)/254 (RPVST+)
  • IGMP Groups
    up to 4K

  • Ports (720XPM-48TH-6SY)
    48x 1G RJ45 PoE
    2x 10G SFP
    4x 25G SFP
  • Ports (720XDM-48T-6SY)
    48x 1G RJ45 (non-PoE)
    2x 10G SFP
    4x 25G SFP
  • Ports (720XDM-32S-6SY)
    32x 1G SFP (non-PoE)
    2x 10G SFP
    4x 25G SFP
  • 10M-1G UTP (90W) (720XPM-48TH-6SY)
    48
  • 10M-1G UTP (data only) (720XDM-48T-6SY)
    48
  • 1G SFP (720XDM-32S-6SY)
    32
  • Max 10G ports
    6
  • Max 25G ports
    4
  • Throughput (2 way) (720XPM-48TH-6SY)
    336Gbps (MACsec: 50Gbps up, 50Gbps down)
  • Throughput (2 way) (720XDM-48T-6SY)
    336Gbps (MACsec: 50Gbps up, 50Gbps down)

  • Power Supplies Supported (720XPM-48TH-6SY)
    1050W, 2000W
  • Power Supplies Supported (720XDM-48T-6SY)
    300W
  • Power Supplies Supported (720XDM-32S-6SY)
    300W
  • Default Power Supply (720XPM-48TH-6SY)
    1050W
  • Default Power Supply (720XDM-48T-6SY)
    300W
  • Default Power Supply (720XDM-32S-6SY)
    300W
  • System Power (MAX)
    70W
  • PoE Power Single 1050W AC PS1 (720XPM-48TH-6SY)
    980W
  • PoE Power Single 2000W AC PS1 (720XPM-48TH-6SY)
    1930W
  • PoE Power Dual 1050W AC PS1 (720XPM-48TH-6SY)
    2030W

  • 10GBASE-CR
    SFP+ to SFP+: 0.5m-5m
  • 10GBASE-AOC
    SFP+ to SFP+: 3m-30m
  • 10GBASE-T
    100m
  • 10GBASE-SRL
    100m
  • 10GBASE-SR
    300m
  • 10GBASE-LRL
    1km
  • 10GBASE-LR
    10km
  • 10GBASE-ER
    40km
  • 10GBASE-ZR
    80km
  • 10GBASE-DWDM
    80km
View datasheet for full specs
