Arista AWE 7200R Series Routers
The Arista AWE 7200R Series WAN Routing Platforms, powered by Arista EOS, offer high-performance control and data-plane scaling fit-to-purpose for enterprise-class WAN edge and aggregation requirements.
The new Arista AWE 7200R Series WAN Routing Platforms, powered by Arista EOS, offer highperformance control and data-plane scaling fit-to-purpose for enterprise-class WAN edge and aggregation requirement.
The Arista AWE 7200R Series supporting 1/10/100 GbE interfaces and flexible network modules can handle throughput of 2 Gbps to 100 Gbps for aggregate traffic. Encrypted throughput supported is 1Gbps to over 50 Gbps of aggregate AES256 encrypted imix traffic with high routing tables, VRF and tunnel scale. This level of performance makes it suitable for various use cases, supporting traditional routing and SDWAN use cases, making it an ideal choice for scenarios where robust network aggregation and interconnectivity are critical.
Features and Benefits
The capabilities that set Arista AWE 7200R Series Routers apart.

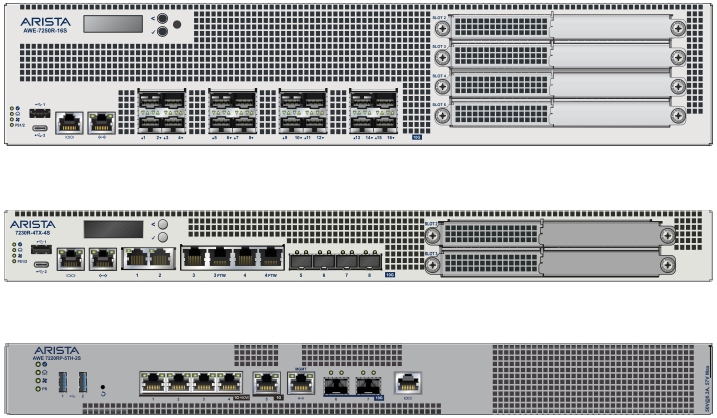

Product Highlights
AWE-7250R-16S-F
- 50 Gbps Encrypted / 100 Gbps Aggregate Throughput
- 16x 10G Ethernet ports (SFP+)
- 4x Expansion Slots
- N+1 redundant power/cooling
AWE-7230R-4TX-4S-F
- 5 Gbps Encrypted / 30 Gbps Aggregate Throughput
- 4x 1/2.5/5/10G (RJ45) Ethernet ports (2x Port FTW)
- 4x 1/10G (SFP+) Ethernet ports
- 2x Expansion Slots
- N+1 redundant power/cooling
Traffic and Flow Monitoring
IPFIX
FlowTracker
Talk to an Arista networking specialist
Get pre-sales help sizing and configuring Arista AWE 7200R Series Routers for your network — from leaf/spine design to EOS and CloudVision integration.
Talk to a specialistTechnical Specifications
Hardware and software metrics extracted directly from the official Arista datasheet.
-

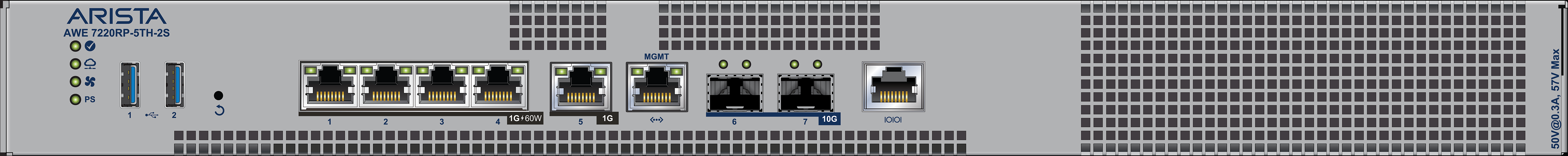

Feature/ModelAWE-7220RP-5TH-2S-F
-
Ports4 RJ45 10/100/1G PoE++
1 RJ45 10/100/1G
2 1/10G (SFP+) -
NIM Slots (OCP3.0)N/A
-
Encrypted Throughput (iMix, Aggregate) / UnEncrypted1 Gbps / 7 Gbps
-
CPU4 core -x86
-
System Memory16GB
-
System Flash32GB
-
USB Ports2
-
Console Ports1
-
100M/1G Management port1
-
Ports 1/1 to 1/8 (10G)10GBASE-CR
10GBASE-AOC
10GBASE-SR
10GBASE-LR -
Ports 1/1 to 1/8 (1G)1GbE SX/LX
-
Ports 1/1 to 1/16 (1G)SFP-1G-T
-
Ports 1/9 to 1/16 ACP (10G)10GBASE-CR
10GBASE-AOC
10GBASE-SRL
10GBASE-SR
10GBASE-LRL
10GBASE-LR
10GBASE-ER
10GBASE-ZR
10GBASE-DWDM
SFP-10G-T
-
Ports 1/1 to 1/4 ACP (1/2.5/5/10G)RJ45
-
Ports 1/5 to 1/8 ACP (1G)1GbE SX/LX
SFP-1G-T -
Ports 1/5 to 1/8 ACP (10G)10GBASE-CR
10GBASE-AOC
10GBASE-SRL
10GBASE-SR
10GBASE-LRL
10GBASE-LR
10GBASE-ER
10GBASE-ZR
10GBASE-DWDM
SFP-10G-T
-
Ports 1-5 (10/100/1G)RJ45
-
Ports 1-4 (10/100/1G)RJ45 (PoE++)
-
Ports 6-7 (10G)10GBASE-CR
10GBASE-AOC
10GBASE-SRL
10GBASE-SR
10GBASE-LRL
10GBASE-LR
No SFP-10G-T -
Ports 6-7 (1G)1GbE SX/LX
No SFP-1G-T
Compare Arista AWE 7200R Series Routers Series
Select the right scale for your network workload.
| Model Name | Max Capacity | Port Config | Action |
|---|---|---|---|
| AWE-7220RP-5TH-2S-F | 1 Gbps Encrypted / 7 Gbps Aggregate Throughput | 4 RJ45 10/100/1G PoE++, 1 RJ45 10/100/1G, 2 1/10G (SFP+) | Get Quote |
| AWE-7230R-4TX-4S-F | 5 Gbps Encrypted / 30 Gbps Aggregate Throughput | 4 RJ45 1/2.5/5/10G, 4 1/10G SFP+ | Get Quote |
| AWE-7250R-16S-F | 50 Gbps Encrypted / 100 Gbps Aggregate Throughput | 16 1/10G SFP+ | Get Quote |
