Arista 7050TX

Overview:

The Arista 7050TX are members of the Arista 7050X Series and key components of the Arista portfolio of data center switches. The Arista 7050X Series are purpose built 10/40GbE data center switches in compact and energy efficient form factors with wire speed layer 2 and layer 3 features combined with low latency and advanced features for software defined cloud networking.

Increased adoption of 10 Gigabit Ethernet servers coupled with applications using higher bandwidth is accelerating the need for dense 10 and 40 Gigabit Ethernet switching. The 7050TX Series support from 32 to 96 ports of auto-negotiating 100Mb/1Gb/10GBASE-T and from 4 to 12 ports of 10/40GbE that allow customers to design large leaf and spine networks to accommodate the east-west traffic patterns found in modern data centers. The 7050TX backwards compatibility with existing gigabit Ethernet cabling reduces the cost of migrating to 10 Gigabit Ethernet and offers an easy evolution.

Featuring a choice of four 1RU models and one 2RU model the 7050TX Series deliver high density 10GbE based RJ45 ports and 10/40G ports using either QSFP+ or embedded optics with MXP multi-speed ports. The embedded MXP ports enable a flexible choice of 3x40GbE or 12x10GbE on each interface. Using fiber breakout cables these enable a wide range of 10GbE and 40GbE combinations.

All models in the 7050TX Series delivers rich layer 2 and layer 3 features with wire speed performance up to a maximum performance of 2.56Tbps. The Arista 7050TX switches offer low latency and a shared 12 MB packet buffer pool that is allocated dynamically to ports that are congested. With typical power consumption of less than 5 watts per 10GbE port the 7050TX Series are power efficient. An optional builtin SSD supports advanced logging, data capture and other services directly on the switch. Combined with Arista EOS the 7050X Series delivers advanced features for big data, cloud, virtualized and traditional data center designs.

Arista EOS

The Arista 7050X runs the same Arista EOS software as all Arista products, simplifying network administration. Arista EOS is a modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic. Built on top of a standard Linux kernel, all EOS processes run in their own protected memory space and exchange state through an in-memory database. This multi-process state sharing architecture provides the foundation for in-service-software updates and self-healing resiliency.

With Arista EOS, advanced monitoring and automation capabilities such as Zero Touch Provisioning, VMTracer and Linux based tools can be run natively on the switch with the powerful x86 CPU subsystem.

Product Highlights

Performance 7050TX-128: 96 x 1/10GbE and 8x 40GbE 7050TX-96: 48 x 1/10GbE and 12x 40GbE 7050TX-72: 48x 1/10GbE and 6x 40GbE 7050TX-72Q: 48x 1/10GbE and 6x 40GbE 7050TX-64: 48x 1/10GbE and 4x 40GbE 7050TX-48: 32x 1/10GbE and 4x 40GbE Up to 2.56 terabits per second Up to 1.44 billion packets per second Wire speed L2 and L3 forwarding Latency from 3 microseconds Data Center Optimized Design Typical power under 5W per 10GbE port Over 94% efficient power supplies 1+1 redundant & hot-swappable power N+1 redundant & hot-swappable fans Front-to-rear or rear-to-front cooling Tool less rails for simple installation Cloud Networking Ready VXLAN and VM Tracer OpenFlow, DirectFlow and eAPI 288K MAC entries 144K IPv4 Routes / 208K IPv4 Host Routes 12MB Dynamic Buffer Allocation Resilient Control Plane Dual-core x86 CPU Up to 8GB DRAM 4GB Flash User applications can run in a VM

Built-in Solid State Storage 100GB Solid State Drive option Store logs and data captures Leverage linux tools with no limitations Advanced Provisioning & Monitoring CloudVision Zero Touch Provisioning (ZTP) LANZ for microburst detection DANZ Advanced Mirroring & Tap Aggregation for improved visibility sFlow Self-configure and recover from USB Arista Extensible Operating System Single binary image for all products Fine-grained truly modular network OS Stateful Fault Containment (SFC) Stateful Fault Repair (SFR) Full Access to Linux shell and tools Extensible platform - bash, python, C++

Benefits:

High Availability

The Arista 7050X series switches were designed for high availability from both a software and hardware perspective. Key high availability features include:

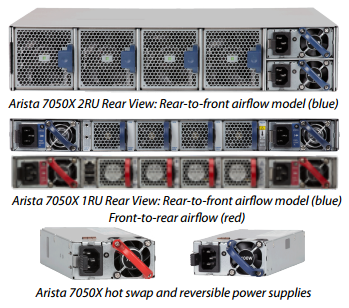

• 1+1 hot-swappable power supplies and four N+1 hot-swap fans
• Color coded PSU’s and fans - common to Arista 1RU devices
• Live software patching
• Self healing software with Stateful Fault Repair (SFR)
• Smart System Upgrade (SSU) and Accelerated Software Update (ASU)
• Up to 64 10GbE ports per link aggregation group (LAG)
• Multi-chassis LAG for active/active L2 multi-pathing
• 64-way ECMP routing for load balancing and redundancy

Dynamic Buffer Allocation

In cut-through mode, the Arista 7050X switches forward packets with a latency of 550 nanoseconds to 650 nanoseconds. Upon congestion, the packets are buffered in shared packet memory that has a total size of 12 Mbytes. Unlike other architectures that have fixed per-port packet memory, the 7050X Series use Dynamic Buffer Allocation (DBA) to allocate up to 6.7MB of packet memory to a single port for lossless forwarding.

Scaling Data Center Performance

The Arista 7050X series delivers line rate switching at layer 2 and layer 3 to enable faster and simpler network designs for data centers that dramatically lowers the network capital and operational expenses. When used in conjunction with the Arista 7000 series of fixed and modular switches it allows networks to scale to over 110,000 10G servers in low-latency two-tier networks that provide predictable and consistent application performance. The flexibility of the L2 and L3 multi-path design options combined with support for open standards provides maximum flexibility, scalability and network wide virtualization. Arista EOS advanced features provide control and visibility with single point of management.

Maximum Flexibility for Scale Out Network Designs

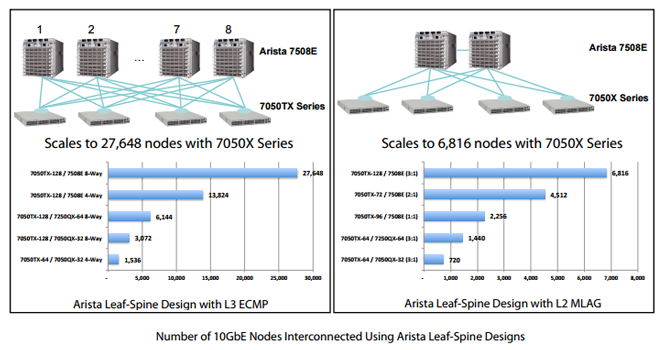

Scale out network designs enable solutions to start small and evolve over time. A simple two-way design can grow as far as 64-way without significant changes to the architecture. The Arista 7050X include enhancements that allow for flexible scale-out designs:

• 64-way ECMP and 64-way MLAG to provide scalable designs and balance traffic evenly across large scale 2 tier leaf-spine designs
• Custom hash algorithms for efficient hashing, persistent hashing and custom lookups for tunneled protocols.
• Flexible allocation of L2 and L3 forwarding table resources for more design choice
• Wide choice of dense 10G/40G ports for single port multi-speed flexibility
• VXLAN routing, bridging and gateway for physical to virtualization communication to enable next generation data center designs
• DANZ, sFlow and multi-port mirroring to detect micro-burst congestion and provide network wide visibility and monitoring

Software Defined Networking

Arista Software Defined Cloud Networking (SDCN), combines the principles that have made cloud computing the unstoppable force that it is: automation, self service provisioning, and linear scaling of both performance and economics coupled with the trend in Software Defined Networking that delivers: network virtualization, custom programmability, simplified architectures, and lower capital expenditure. This combination creates a best-in-class software foundation for maximizing the value of the network to both the enterprise and service provider data center. A new architecture for the most mission-critical location within the IT infrastructure that simplifies management and provisioning, speeds up service delivery, lowers costs and creates opportunities for competitive differentiation, while putting control and visibility back in the hands of the network and systems administrators.

Smart System Upgrade

Smart System Upgrade is a network application designed to address one of the most complicated and challenging tasks facing data center administrators - network infrastructure maintenance. Changes to the underlying network infrastructure can affect large numbers of devices and cause significant outages. SSU provides a fully customizable suite of features that tightly couples data center infrastructure to technology partners allowing for intelligent insertion and removal, programmable updates to software releases and open integration with application and infrastructure elements.

Advanced Event Management (AEM)

Simplifying the overall operations, AEM provides the tools to customize alerts and actions. AEM is a powerful and flexible set of tools to automate tasks and customize the behavior of EOS and the operation of the overall data center switching infrastructure. AEM allows operators to fully utilize the intelligence within EOS to respond to real-time events, automate routine tasks, and automate actions based on changing network conditions.

Enhanced Features for High Performance Networks

The Arista 7050TX deliver a suite of advanced traffic control and monitoring features to improve the agility of modern high performance environments, with solutions for data monitoring, and next-generation virtualization.

Precise Data Analysis

Arista Latency Analyzer (LANZ) is an integrated feature of EOS. LANZ provides precise real-time monitoring of micro-burst and congestion events before they impact applications, with the ability to identify the sources and capture affected traffic for analysis.

Virtualization

Supporting next-generation virtualized data centers requires tight integration with orchestration tools and emerging encapsulation technologies such as VXLAN. The 7050TX builds on the valuable tools already provided by the Arista VM Tracer suite to integrate directly into encapsulated environments. Offering a wire-speed gateway between VXLAN and traditional L2/3 environments, the 7050X makes integration of non-VXLAN aware devices including servers, firewalls and load-balancers seamless and provides the ability to leverage VXLAN as a standards based L2 extension technology for non-MPLS environments.

Unified Forwarding Table

Cloud network scalability is directly impacted by the size of a switches forwarding tables. In many systems a 'one size fits all' approach is adopted using discrete fixed size tables for each of the common types of forwarding entry. The Arista 7050X leverages a common Unified Forwarding Table for the L2 MAC, L3 Routing, L3 Host and IP Multicast forwarding entries, which can be partitioned per entry type. The ideal size of each partition varies depending on the network deployment scenario. The flexibility of the UFT coupled with the range of pre-defined configuration profiles available on the 7050X ensures optimal resource allocation for all network topologies and network virtualization technologies.

Features:

Layer 2 Features 802.1w Rapid Spanning Tree 802.1s Multiple Spanning Tree Protocol Rapid Per VLAN Spanning Tree (RPVST+) 4096 VLANs Q-in-Q 802.3ad Link Aggregation/LACP 64 ports/channel 104 groups per system Multi-Chassis Link Aggregation (MLAG) 64 ports per MLAG Custom LAG Hashing Resilient LAG Hashing 802.1AB Link Layer Discovery Protocol 802.3x Flow Control Jumbo Frames (9216 Bytes) IGMP v1/v2/v3 snooping Storm Control Private VLANs RAIL Layer 3 Features Routing Protocols: OSPF, OSPFv3, BGP, MP-BGP, IS-IS, and RIPv2 64-way Equal Cost Multipath Routing (ECMP) Resilient ECMP Routes VRF BFD Route Maps IGMP v2/v3 PIM-SM / PIM-SSM Anycast RP (RFC 4610) VRRP Virtual ARP (VARP) Policy Based Routing (DirectFlow) Network Address Translation * Static NAT Dynamic NAT uRPF Advanced Monitoring and Provisioning Zero Touch Provisioning (ZTP) Latency Analyzer and Microburst Detection (LANZ) * Configurable Congestion Notification (CLI, Syslog) Streaming Events (GPB Encoded) Capture/Mirror of congested traffic Advanced Monitoring and Aggregation Port Mirroring (4 active sessions) L2/3/4 Filtering on Mirror Sessions* Mirror to EOS/SSD* Advanced Event Management suite (AEM) CLI Scheduler Event Manager Event Monitor Linux tools Optional SSD for logging and data capture Integrated packet capture/analysis with TCPDump RFC 3176 sFlow Restore & configure from USB Blue Beacon LED for system identification Software Defined Networking (SDN) Openflow 1.0 Openflow 1.3 * Arista DirectFlow eAPI OpenStack Neutron Support Virtualization Support VXLAN Gateway (draft-mahalingam-dutt-dcops-vxlan-01) VXLAN Tunnel Endpoint VXLAN Routing * VXLAN Bridging VM Tracer VMware Integration VMware vSphere support VM Auto Discovery VM Adaptive Segmentation VM Host View Security Features IPv4 / IPv6 Ingress & Egress ACLs using L2, L3, L4 fields MAC ACLs ACL Drop Logging ACL Counters Control Plane Protection (CPP) DHCP Relay / Snooping MAC Security TACACS+ RADIUS

Quality of Service (QoS) Features Up to 8 queues per port 802.1p based classification DSCP based classification and remarking Explicit Congestion Notification (ECN) QoS interface trust (COS / DSCP) Strict priority queueing Weighted Round Robin (WRR) Scheduling * Per-Priority Flow Control (PFC) Data Center Bridging Extensions (DCBX) 802.1Qaz Enhanced Transmissions Selection (ETS) * ACL based DSCP Marking * ACL based Policing * Policing/Shaping Rate limiting Audio Video Bridging (AVB) * Network Management CloudVision Task-Oriented Multi-Device CLI 10/100/1000 Management Port RS-232 Serial Console Port USB Port SNMP v1, v2, v3 Management over IPv6 Telnet and SSHv2 Syslog AAA Industry Standard CLI Accelerated Software Upgrade (ASU) Extensibility Linux Tools Bash shell access and scripting RPM support Custom kernel modules Programmatic access to system state Python C++ Native KVM/QEMU support Standards Compliance 802.1D Bridging and Spanning Tree 802.1p QOS/COS 802.1Q VLAN Tagging 802.1w Rapid Spanning Tree 802.1s Multiple Spanning Tree Protocol 802.1AB Link Layer Discovery Protocol 802.3ad Link Aggregation with LACP 802.3ab 1000BASE-T 802.3z Gigabit Ethernet 802.3ae 10 Gigabit Ethernet 802.3ba 40 Gigabit Ethernet RFC 2460 Internet Protocol, Version 6 (IPv6) Specification RFC 4861 Neighbor Discovery for IP Version 6 (IPv6) RFC 4862 IPv6 Stateless Address Autoconfiguration RFC 4443 Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) Specification SNMP MIBs RFC 3635 EtherLike-MIB RFC 3418 SNMPv2-MIB RFC 2863 IF-MIB RFC 2864 IF-INVERTED-STACK-MIB RFC 2096 IP-FORWARD-MIB RFC 4363 Q-BRIDGE-MIB RFC 4188 BRIDGE-MIB RFC 2013 UDP-MIB RFC 2012 TCP-MIB RFC 2011 IP-MIB RFC 2790 HOST-RESOURCES-MIB RFC 3636 MAU-MIB RMON-MIB RMON2-MIB HC-RMON-MIB LLDP-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB ENTITY-MIB ENTITY-SENSOR-MIB ENTITY-STATE-MIB ARISTA-ACL-MIB ARISTA-QUEUE-MIB RFC 4273 BGP4-MIB RFC 4750 OSPF-MIB ARISTA-CONFIG-MAN-MIB ARISTA-REDUNDANCY-MIB RFC 2787 VRRPv2MIB MSDP-MIB PIM-MIB IGMP-MIB IPMROUTE-STD-MIB SNMP Authentication Failure trap ENTITY-SENSOR-MIB support for DOM (Digital Optical Monitoring) User configurable custom OIDs

Specifications:

Table Sizes
STP Instances	64 (MST)/510 (RPVST+)
IGMP Groups	288K, with 8K unique groups
ACLs	4K
Egress ACLs	1K
ECMP	64-way, 1K groups
	Base Mode	UFT Modes
MAC Addresses	32K	288K
IPv4 Hosts	16K	208K
IPv4 Routes - Unicast	16K	144K *
IPv4 Routes - Multicast	16K	104K *
IPv6 Hosts	16K	104K
IPv6 Routes - Unicast	8K	77K *
IPv6 Routes - Multicast	4K	52K *
Maximum values dependent on shared resources in some cases
Environmental Characteristics
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-25 to 70°C (-13 to 158°F)
Relative Humidity	5 to 95%
Operating Altitude	0 to 10,000 ft, (0-3,000m)
Standards Compliance
EMC	Emissions: FCC, EN55022, EN61000-3-2, EN61000-3-3 or EN61000-3-11, EN61000-3-12 (as applicable) Immunity: EN55024 Emissions and Immunity: EN300 386
Safety	UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme with all country differences
Certifications	North America (NRTL) European Union (EU) BSMI (Taiwan) C-Tick (Australia) CCC (PRC) MSIP (Korea) EAC (Customs Union) VCCI (Japan)

Power Supply Specifcations
Power Supply Model	PWR-500AC	PWR-500-DC	PWR-745AC	PWR-1100AC	PWR-1100-DC
Input Voltage	100-240VAC	40-72V DC	100-240VAC	200-240VAC	40-72V DC
Typical Input Current	6.3- 2.3A	13.1 - 7.3A 11A at -48V	10 - 4A	6.5 - 5.5A	16 - 29A 26.6A at -48V
Input Frequency	50/60Hz	DC	50/60Hz	50/60Hz	DC
Input Connector	IEC 320-C13	AWG #16-12	IEC 320-C13	IEC 320-C13	AWG #10-3
Efficiency (Typical)	94% Platinum	-	93% Platinum	93% Platinum	-
Compatibility	7050TX-48, 7050TX-64, 7050TX-72, 7050TX-72Q, 7050TX-96		7050TX-128

Specifications
	7050TX-128	7050TX-96	7050TX-72Q	7050TX-72	7050TX-64	7050TX-48
Ports	96 x 10G-T 8 x QSFP+	48 x 10G-T 4 x MXP	48 x 10G-T 6 x QSFP+	48 x 10G-T 2 x MXP	48 x 10G-T 4 x QSFP+	32 x 10G-T 4 x QSFP+
Total 40GbE Ports	8	12	6	6	4	4
Total 10GbE Ports	96	96	72	72	64	48
100M/1G/10GBASE-T (RJ45)	96	48	48	48	48	32
Throughput	2.56 Tbps	1.92 Tbps	1.44 Tbps	1.44 Tbps	1.28 Tbps	960 Gbps
Packets/Second	1440 Mpps	1440 Mpps	1080 Mpps	1080 Mpps	960 Mpps	720 Mpps
Latency (RJ45 to uplinks)	3usec
CPU	Quad-Core x86
System Memory	8 Gigabytes	4 Gigabytes
Flash Storage Memory	4 Gigabytes
SSD Storage (optional)	100 Gigabytes	120 Gigabytes	No	120 Gigabytes	120 Gigabytes	120 Gigabytes
Packet Buffer Memory	12MB (Dynamic Buffer Allocation)
10/100/1000 Mgmt Port	2	1	1	1	1	1
RS-232 Serial Ports	1 (RJ-45)
USB Ports	1	1	2	1	1	1
Hot-swap Power Supply	2 (1+1 redundant)
Hot-swappable Fans	4 (N+1 redundant)
Reversible Airflow	Yes
Typical/Max Power Draw*	570W / 740W	355W / 455W	340W / 430W	349W / 440W	315W / 387W	305W / 367W
Size (WxHxD)	19 x 3.5 x 18.1” (48.3 x 8.8 x 45.9cm)	19 x 1.75 x 20.6” (48.3 x 4.4 x 52.3cm)	19 x 1.75 x 20.6” (48.3 x 4.4 x 52.3cm)	19 x 1.75 x 20.6” (48.3 x 4.4 x 52.3cm)	19 x 1.75 x 15.8” (48.3 x 4.4 x 40.2cm)	19 x 1.75 x 15.8” (48.3 x 4.4 x 40.2cm)
Weight	34.3lbs (15.6kg)	22.5lbs (10.2kg)	20.1lbs (9.1kg)	22lbs (10kg)	19lbs (8.6kg)	17lbs (7.7kg)

Supported Optics and Cables
Interface Type	QSFP+ ports
10GBASE-CR	0.5m-5m QSFP+ to 4x SFP+
40GBASE-CR4	0.5m to 5m QSFP+ to QSFP+
AOC-40G-Q-Q	3m to 100m
40G-UNIV	150m (OM3) /150m (OM4) /500m (SM)
40GBASE-SR4	100m (OM3) /150m (OM4)
40GBASE-XSR4	300m (OM3) /400m (OM4)
40G-PLRL4	1km (1km 4x10G LR/LRL)
40G-PLR4	10km (10km 4x10G LR/LRL)
40GBASE-ER4	40km
40GBASE-LR4	10km

Documentation:

Download the Arista 7050TX Datasheet (PDF).
