Overview:
The Arista Optical Modules and Cables offer customers a wide variety of high-density and low-power 100 Gigabit, 40 Gigabit, 10 Gigabit, 1 Gigabit, and 100 Megabit Ethernet connectivity options over fiber or copper media.

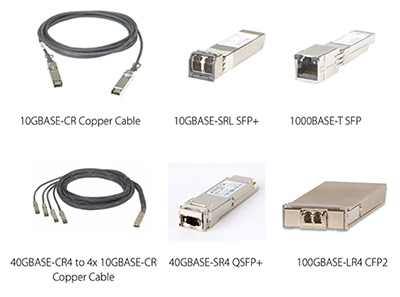

To accommodate an ever increasing spectrum of applications Arista offers a wide choice of CFP2, Quad Small Form-Factor Pluggable (QSFP+) and Small Form-Factor Pluggable (SFP) transceiver types that ensures the advantages of open standards, power efficiency and the broadest range of media types are offered. Each module is optimized for different media and reach (ranging from 0.5 meters to 80 kilometers). In addition, the SFP+ ports also support three Gigabit Ethernet SFP transceiver types for single-mode fiber, multi-mode fiber, and Cat-5 copper.
Integrated optics on some products deliver cost effective solutions that are optimized for a choice of interface speed and density in an all-in-one MXP (multi-speed port) interface. The MXP interfaces present standard fiber interfaces and are fully compliant to the relevant IEEE specifications ensuring multi-vendor interoperability as well as the benefits of extended reach and increased reliability.
Key Features
|
|
Features:
Physical Characteristics
Environmental Characteristics
Power Requirements
|
Safety
IEEE Compliance
Standards Compliance
|
- All cables and cable assemblies used must be compliant with the standards specified in the standards section
- Minimum cabling distance for -LR, -SR, -SX, -LX modules is 2m according to IEEE standards
** Operating temperature for DWDM optics is 0 - 35C
*** Links beyond 30 km over single-mode fiber are considered engineered links as per IEEE 802.3ae.
Specifications:
10 Gigabit Ethernet SFP+ Specifications | ||||||||
---|---|---|---|---|---|---|---|---|
PHY Type | Connector Type | Wavelength (nm) | Cable Type | Core Size (um) | Modal Bandwidth (MHz*Km) | Tx power (dBm) | Rx power (dBm) | Operating Distance |
10GBASE-SR | LC | 850 | MMF | 62.5 50.0 50.0 50.0 50.0 |
200 400 500 2000 (OM3) 4700 (OM4) |
-7.3 to -1.0 | -9.9 to -1.0 | 33m 66m 82m 300m 400m |
10GBASE-SRL | LC | 850 | MMF | 62.5 50.0 50.0 50.0 50.0 |
200 400 500 2000 (OM3) 4700 (OM4) |
-8.0 to -1.0 | -9.9 to -1.0 | 11m 22m 27m 100m 150m |
10GBASE-LRL | LC | 1310 | SMF | G.652 | - | -8.2 to 0.5 | -12.5 to 0.5 | 1km |
10GBASE-LR | LC | 1310 | SMF | G.652 | - | -8.2 to 0.5 | -14.4 to 0.5 | 10km |
10GBASE-ER | LC | 1550 | SMF | G.652 | - | -4.7 to 4.0 | -15.0 to -1.0 | 40km*** |
10GBASE-ZR | LC | 1550 | SMF | G.652 | - | -1.0 to 4.0 | -23.0 to -7.0 | 80km |
10GBASEDWDM | LC | 1560.61 to 1530.33 | SMF | G.652 | - | -4..7 to 4.0 | -15.0 to -1.0 | 40km |
10GBASEDWDM | LC | 1560.61 to 1529.55 | SMF | G.652 | - | -1.0 to 4.0 | -23.0 to -7.0 | 80km |
10 Gigabit Ethernet Cable Specifications | ||||||
---|---|---|---|---|---|---|
PHY Type | Connector Type | Wavelength (nm) | Cable Type | Core Size (um) | Modal Bandwidth (MHz*Km) | Operating Distance |
10GBASE-CR | SFP+ (Both ends) | - | Twinax Copper | - | - | 0.5m to 7m |
10GBASE-CR | QSFP+ to 4 x SFP+ | - | Twinax Copper | - | - | 0.5m to 5m |
10G-AOC | SFP+ (Both ends) | 850nm | MMF | - | - | 3m to 30m |
Gigabit Ethernet SFP Specifications | ||||||||
---|---|---|---|---|---|---|---|---|
PHY Type | Connector Type | Wavelength (nm) | Cable Type | Core Size (um) | Modal Bandwidth (MHz*Km) | Tx power (dBm) | Rx power (dBm) | Operating Distance |
1000BASE-SX | LC | 850 | MMF | 62.5 62.5 50.0 50.0 |
160 200 400 500 |
-9.5 to -4.0 | -17 | 220m 275m 500m 550m |
1000BASE-LX | LC | 850 | MMF* | 62.5 50.0 50.0 |
500 400 500 |
-9.5 to -3.0 | -19 | 550m 550m 550m |
LC | 1310 | SMF | G.652 | - | -9.5 to -3.0 | -19 | 10km | |
1000BASE-T | RJ-45 | - | Cat5 (UTP) | - | - | - | - | 100m |
40 Gigabit Ethernet QSFP+ Optic Specifications | ||||||||
---|---|---|---|---|---|---|---|---|
PHY Type | Connector Type | Wavelength (nm) | Cable Type | Core Size (um) | Modal Bandwidth (MHz*Km) | Tx power (dBm) | Rx power (dBm) | Operating Distance |
40GBASE-SR4 | MPO | 850 | OM3 OM4 |
50.0 50.0 |
2000 (OM3) 4700 (OM4) |
-7.6 to -1/lane | -9.5 to +2.4/lane | 100m 150m |
40GBASEXSR4 | MPO | 850 | OM3 OM4 |
50.0 50.0 |
2000 (OM3) 4700 (OM4) |
-7.5 to +1/lane | -9.9 to +2.4/lane | 300m 400m |
40G-UNIV | LC | 1270 1290 1310 1330 |
OM3 OM4 SMF |
50.0 50.0 G.652 |
2000 (OM3) 4700 (OM4) - |
-7 to +3.5*/lane | -10.0 to +3.5/lane | 150m 150m 500m |
40GBASE-LR4 | LC | 1270 1290 1310 1330 |
SMF | G.652 | - | -7 to +2.3/lane | -13.7 to +2.3/lane | 10km |
40G-PLRL4 | MPO | SMF | G.652 | - | -8.2 to +0.5/lane | -12.5 to +0.5/lane | 1km | |
40G-LRL4 | LC | 1270 1290 1310 1330 |
SMF | G.652 | - | -7 to +2.3/lane | -11.5 to +2.3/lane | 1km |
40G-PLR4 | MPO | SMF | G.652 | - | -8.2 to +0.5/lane | -14.4 to +0.5/lane | 10km |
40 Gigabit Ethernet QSFP+ Cable Specifications | ||||||
---|---|---|---|---|---|---|
PHY Type | Connector Type | Wavelength (nm) | Cable Type | Core Size (um) | Modal Bandwidth (MHz*Km) | Operating Distance |
40GBASE-CR4 | QSFP+ to QSFP+ | - | Twinax Copper | - | - | 0.5m to 7m |
40G-AOC | QSFP+ to QSFP+ | 850 | MMF | - | - | 3m to 100m |
100 Gigabit Ethernet CFP2 Optic Specifications | ||||||||
---|---|---|---|---|---|---|---|---|
PHY Type | Connector Type | Wavelength (nm) | Cable Type | Core Size (um) | Modal Bandwidth (MHz*Km) | Tx power (dBm) | Rx power (dBm) | Operating Distance |
100GBASELR4 | LC | 1295.56 1300.05 1304.58 1309.14 |
SMF | G.652 | - | -4.3 to +4.5/lane | -10.6 to +4.5/lane | 10km |
Documentation:
Download the Arista Optics Modules and Cables Datasheet (PDF).
