Overview:
Designed for large virtualized data centers and cloud networks the Arista 7500 Series modular switches are the industry’s highest performance data center switches, available in a compact 7RU (4-slot) or 11RU (8-slot) they combine scalable L2 and L3 resources with advanced features for network monitoring, precision timing, network virtualization to deliver scalable and deterministic network performance for mission critical data centers, enterprise and HPC environments.
The Arista 7500E is the second generation of the 7500 Series and delivers seamless upgrades ensuring investment protection of first generation fabrics, line cards and common equipment while setting a new standard for performance, density, reliability, and power efficiency. The Arista 7500E Series offers over 30Tbps of total capacity for 1,152 ports of 10GbE or 288 ports of 40GbE and support for 96 ports of wire-speed 100GbE with a broad choice of interface types that support flexible combinations of 10G, 40G and 100G modes on a single port.
With front-to-rear airflow, redundant and hot swappable supervisor, power, fabric and cooling modules the system is purpose built for data centers. The 7500E Series is energy efficient with typical power consumption of under 4 watts per port for a fully loaded chassis. All of these attributes make the Arista 7500E an ideal platform for building reliable, low latency, resilient and highly scalable data center networks.
Arista EOS
All Arista products including the 7500E Series runs the same Arista EOS software, binary image simplifying network administration with a single standard across all switches. Arista EOS is a modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic. Built on top of a standard Linux kernel, all EOS processes run in their own protected memory space and exchange state through an in-memory database. This multi-process state sharing architecture provides the foundation for in-service-software updates and self-healing resiliency together with stateful switchover without the loss of data plane forwarding.
Arista EOS enables advanced monitoring and automation capabilities such as Zero Touch Provisioning, LANZ, VM Tracer and Linux based tools to be run natively on the switch.
Product Highlights
Performance
High Hardware Availability
Virtualization and Provisioning
Scalable Architecture
|
Resilient Control Plane
Data Center Class Design
Arista Extensible Operating System
|
Features & Benefits:
Layer 2 Features
Layer 3 Features
Advanced Monitoring and Provisioning
Virtualization Support
Security Features
|
Quality of Service (QoS) Features
Network Management
Extensibility
Line card Features
Fabric Features
|
Standards Compliance
SNMP MIBs
|
* Not currently supported in EOS
Specifications:

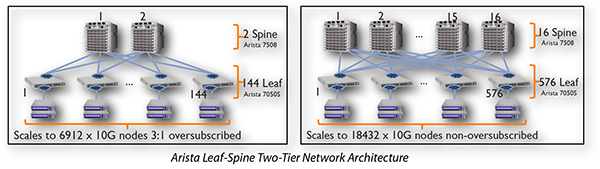

Scaling Data Center Performance
The Arista 7500E delivers true line rate non-blocking switching capacity to enable dramatically faster and simpler network designs for data centers that lowers network capital and operational expenses. When used in conjunction with Arista 7050 or 7150 10G leaf switches and Arista’s Multi-Chassis Link Aggregation (MLAG) technology, a pair of 7508E Switches can support over 6,000 Servers with a leaf and spine active/active L2 network topology. A combination of 16 Arista 7508E switches in a spine at Layer 3 scales the network up to over 18,000 10G Servers in a fully non-blocking, low-latency, two-stage network that provides predictable and consistent application performance. The flexibility of the L2 and L3 multi-path design options combined with support for open standards provides maximum flexibility, scalability and network wide virtualization. Arista EOS advanced features provides control, and visibility with single point of management.
Software Defined Cloud Networks
Arista Software Defined Cloud Networking (SDCN), combines the principles that have made cloud computing the unstoppable force that it is: automation, self service provisioning, and linear scaling of both performance and economics coupled with the trend in Software Defined Networking that delivers: network virtualization, custom programmability, simplified architectures, and lower capital expenditure. This combination creates a best-in-class software foundation for maximizing the value of the network to both the enterprise and service provider data center. A new architecture for the most mission-critical location within the IT infrastructure that simplifies management and provisioning, speeds up service delivery, lowers costs and creates opportunities for competitive differentiation, while putting control and visibility back in the hands of the network and systems administrators.
The Four Pillars of Arista's Software Defined Cloud Networking:
- Universal Cloud Network - scalable standards based MLAG at Layer 2, ECMP for Layer 3 and VXLAN for most flexibility
- Cloud Control - Standards based AEM, ZTP/ZTR, LANZ and DANZ
- Network Wide Virtualization - Multi-vendor API Support with eAPI, VXLAN and NSX, and other encapsulation techniques
- Network Applications and Automated Management - Network applications; single point of management and open - Openflow, Openstack, OpenVirtualSwitch and OVSDB
Deterministic Network Performance
The Arista 7500 Series uses a deep buffer virtual output queue (VOQ) architecture that eliminates head-of-line (HOL) blocking and virtually eliminates packet drops even in the most congested network scenarios. An advanced traffic scheduler fairly allocates bandwidth between all virtual output queues while accurately following queue disciplines including weighted fair queueing, fixed priority, or hybrid schemes including 802.1Qaz ETS. As a result, the Arista 7500 can handle the most demanding data center requirements with ease, including mixed traffic loads of real-time, multicast, and storage traffic while still delivering low latency.
Maximum Flexibility
- 64-way ECMP and 128-way MLAG to provide scalable designs and balance traffic evenly across large scale 2 tier leaf-spine designs
- VoQ architecture and deep packet buffering to eliminate head of line blocking
- Flexible allocation of L2 and L3 forwarding table resources for more design choice
- Wide choice of dense 10G/40G/100G modules and MPO ports for single port multi-speed flexibility
- VXLAN and virtualization features to enable next generation data center designs
- PTP, sFlow, DANZ and multi-port mirroring to detect micro-burst congestion and provide network wide visibility and monitoring
- ACL scalability with up to 12K entries per forwarding engine and 72K ACL entries per module
Enhanced Features for High Performance Networks
The Arista 7500E delivers a suite of advanced traffic control and monitoring features to improve the agility of modern high performance environments, with solutions for data monitoring, precise timing and next-generation virtualization.
Precise Data Analysis
Arista Latency Analyzer (LANZ) and Precision Data Analyzer (DANZ) are integrated features of EOS. DANZ provides a solution to monitoring and visibility challenges at 10/40/100Gbps giving IT operations the ability to proactively deliver feedback on congestion events, filter, replicate, aggregate and capture traffic without affecting production performance. LANZ provides precise real-time monitoring of micro-burst and congestion events before they impact applications, with the ability to identify the sources and capture affected traffic for analysis.
Precision Timing (IEEE 1588)
Arista’s hardware derived Precision Time Protocol solution provides a robust mechanism for accurate in-band time distribution in high performance environments. The system clock can be synchronized using the Supervisor module clock input port with a PPS source or IEEE 1588 PTP.
Virtualization
Supporting next-generation virtualized data centers requires tight integration with orchestration tools and emerging encapsulation technologies such as VXLAN. The 7500E builds on the valuable tools already provided by the Arista VM Tracer suite to integrate directly into encapsulated environments. Offering a wire-speed gateway between VXLAN and traditional L2/3 environments, the 7500E makes integration of non-VXLAN aware devices including servers, firewalls and load-balancers seamless and provides the ability to leverage VXLAN as a standards based L2 extension technology for non-MPLS environments.
Arista Event Management (AEM)
Simplifying the overall operations, AEM provides the tools to customize alerts and actions. AEM is a powerful and flexible set of tools to automate tasks and customize the behavior of EOS and the operation of the overall data center switching infrastructure. AEM allows operators to fully utilize the intelligence within EOS to respond to real-time events, automate routine tasks, and automate actions based on changing network conditions.

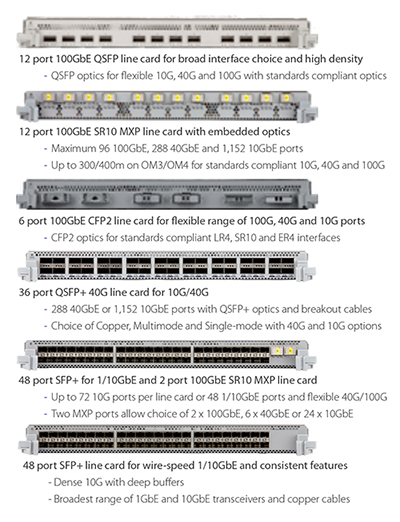

Line Card Modules
Wire-speed line cards deliver up to 14.4 Billion packets per second of forwarding with a distributed virtual output queue architecture and lossless fabric that eliminates head-of-line blocking and provides fairness across all ports. Line cards contains up to 18GB of packet memory for approximately 40msec of traffic buffer per ingress port and virtually eliminating packet drops in congestion scenarios. Line cards connects to all fabric modules in a non-blocking full mesh.
The Arista 7508 and 7504 chassis can be populated with any combination of line cards. For environments requiring the highest performance combined with scalability a range of speed and interface options is available addressing dense 1/10G, 40G and 100G with full support for industry standard connections and comprehensive layer 2 and 3 features for flexible deployment choice.
Embedded optics combined with MPO interfaces provide a multi-speed port (MXP) capability that increases system density with a choice of 10G/40G/100G interfaces. MXP ports support a mix and match option of 12 x 10G, 3 x 40G or 1x 100G per port. With support for up to 400m over multi-mode fiber MXP ports provide high density and seamless migration from 10G to 100G without replacing transceivers or lowering system density.
Line cards with CFP2 and QSFP support industry standard 100G optics for both single and multi-mode fiber for distances up to 40km.
Designed for High Availability and Manageability
The Arista 7500E Series are designed for continuous operations with system wide monitoring of both hardware and software components, simple serviceability and provisioning to prevent single points of failure. The hardware supports high-availability with hotswap of all components with redundant supervisors, power supplies, fabric and cooling modules. Fabric N+1 redundancy provides zero loss of performance with deterministic degradation and integrated fan systems provide dynamic temperature control combined with N+1 redundancy. The 7500E offers 2+2 power redundancy that supports both power source and power supply redundancy.
The Arista EOS software supports stateful failover between the dual redundant supervisors as well as self-healing stateful fault containment (SFC), stateful fault repair (SFR) and live patching through in-service-software updates to help ensure continuous service.
The Arista 7500E lowers total cost of ownership as it is designed to be efficient with power per port as low as 4W per 10GbE port which combined with front to rear cooling to optimize the data center environment produces the most reliable, dense and power efficient modular switch.

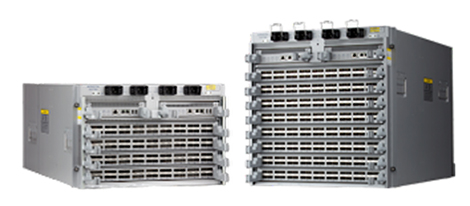

7500 Chassis - 8-slot and 4-slot
The 7500 chassis provides room for two supervisor modules, four or eight line card modules, four power supply modules, and six fabric modules. The 7504 chassis fits into 7 rack units while the 7508 chassis fits into 11U of a standard data center rack. Supervisor and line card modules plug in from the front, while the fabric and power supply modules are inserted from the rear. The midplane is completely passive and provides control plane connectivity to each of the fabric and line card modules. The system design is optimized for data center deployments with front-to-rear airflow.
7500E Supervisor Module
The supervisor modules for the 7500 series run Arista Extensible Operating System (EOS) and handle all control plane and management functions of the system. One supervisor module is needed to run the system and a second can be added for stateful 1+1 redundancy. Each supervisor module takes up only a half slot resulting in very efficient use of space and a higher density design. The quad-core x86 CPU with 16GB of DRAM and an optional SSD provides the control plane performance needed to run an advanced data center switch scaling to over 1,000 physical ports and thousands of virtual ports. A pulse per second clock input port enables synchronizing with an external source to improve the accuracy of monitoring tools.
7500E Fabric Module
At the heart of the 7500E series is the fabric. It interconnects all line cards in a non-blocking architecture irrespective of the traffic pattern providing a full 5.12 Tbps per fabric module. Each line card module connects to the fabric with multiple links and data packets are spread across the links to fully utilize the fabric capacity. Unlike hash-based selection of fabric links, the 7500E architecture provides 100% efficient connectivity from any port to any other port with no drops. The fabric modules are always active-active, provide N+1 redundancy and can be hotswapped with zero performance degradation. The Fabric Modules for the 7508E and the 7504E are different based on the size of the chassis and both integrate a fan assembly for flexible and redundant cooling.
7500E Power Supply Module
The 7500E series switches are equipped with four 2900W AC power supplies. The power supplies are 2+2 grid redundant and hot-swappable. The power supplies are gold climate saver rated and have an efficiency of over 90% with single stage conversion to the internal 12V DC voltage.
Comparison Chart:
| 7500E Series Technical Specifcations | ||
|---|---|---|
| Chassis | DCS-7508 | DCS-7504 |
| Supervisor slots | 2 | 2 |
| Linecard Slots | 8 | 4 |
| Fabric Module Slots | 6 | 6 |
| Power Supply Slots | 4 | 4 |
| Physical Dimensions (HxWxD) | 19.1” x 19” x 30” (48.5 x 48.3 x 76.2cm) | 12.25” x 19” x 30” (31.15 x 48.3 x 76.2cm) |
| Weight (Chassis only) | 95 lbs (43.1 kg) | 76.5 lbs (34.7 kg) |
| Weight (Fully confgured system) | 300 lbs (136 kg) | 210 lbs (95 kg) |
| Maximum 10GbE Port Density | 1,152 Ports | 576 Ports |
| Maximum 40GbE Port Density | 288 Ports | 144 Ports |
| Maximum 100GbE Port Density | 96 Ports | 48 Ports |
| Maximum Throughput / Packets per Second | 30 Tbps / 14.4 Bpps | 15 Tbps / 7.2 Bpps |
| Max Power Consumption | 5,790W | 3,010W |
| Fabric Module | DCS-7508E-FM | DCS-7504E-FM |
| Redundancy | 5+1 | 5+1 |
| Physical Dimensions (HxWxD) | 2.5” x 14” x 10.25” (6.4 x 35.6 x 26cm) | 2.5” x 8.5” x 10.25” (6.4 x 21.5 x 26cm) |
| Weight | 10 lbs (4.5 kg) | 6.5 lbs (2.8 kg) |
| Typical Power (Maximum) | 155W (195W) | 80W (105W) |
| Integrated Fan Module | Yes | Yes |
| Chassis Support | DCS-7508 | DCS-7504 |
| Linecard Module | 7500E-6C2 | 7500E-12CQ | 7500E-12CM | 7500E-36Q | 7500E-72S | 7500E-48S |
| Ports | 6 CFP2 (10G/40G/100G) | 12 QSFP100(40G/100G) | 12 MXP (10G/40G/100G) | 36 QSFP+ (10G/40G) | 48 SFP+ (1G/10G), 2 MXP (10G/40G/100G) | 48 SFP+ (1G/10G) |
| Max 10GbE | 60 | 48 | 144 | 144 | 72 | 48 |
| Max 40GbE | 12 | 12 | 36 | 36 | 6 | - |
| Max 100GbE | 6 | 12 | 12 | - | 2 | - |
| Port Buffer | 9GB | 18GB | 18GB | 18GB | 9GB | 9GB |
| Weight | 12.4 lbs (5.6 kg) | 14 lbs (6.4 kg) | 15.5 lbs (7.0 kg) | 15 lbs (6.8 kg) | 13 lbs (5.9 kg) | 12.5 lbs (5.7 kg) |
| Typical (Max) Power * | 300W (320W) | 414W (486W) | 408W (495W) | 450W (556W) | 212W (305W) | 197W (285W) |
| Physical Dimensions (WxHxD) | 17.5” x 1.75” x 23” (44.5 x 4.5 x 58.4cm) | |||||
| Chassis Support | DCS-7508 and DCS-7504 | |||||
* Typical power consumption measured at 25C ambient with 50% load on all ports
1 Not currently supported
Characteristics:
| Supervisor Module | DCS-7500E-SUP |
|---|---|
| Processor | 2.6Ghz, Quad Core, x86, 64-bit |
| System Memory | 16 GB |
| Flash Storage Memory | 4 GB |
| RS-232 Serial Ports | One (RJ-45) |
| 100/1000 Management Ports | Two (RJ-45) |
| USB 2.0 Interface | Two |
| SSD Storage | 100GB Optional |
| Physical Dimensions (WxHxD) | 8.5” x 1.75” x 23” (21.6 x 4.4 x 58.4cm) |
| Weight | 5 lbs (2.4 kg) |
| Typical Power (Maximum) | 105W (112W) |
| Chassis Support | DCS-7508 and DCS-7504 |
| PWR-2900AC Power Supply Specifcations | |
|---|---|
| Input Circuit (Max) | 200 - 240V, 16A (20A UL) |
| Input Frequency | 50-60 Hz, single phase AC |
| Output Power | 2900W |
| Input Connector | IEC 240 C19 |
| Size (WxHxD) | 4.25” x 3.25” x 10” (10.8 x 8.3 x 25.4cm) |
| Weight | 5.3 lbs (2.4 kg) |
| Chassis Support | DCS-7508 and DCS-7504 |
| Environmental Characteristics | |
|---|---|
| Operating Temperature | 0 to 40˚C (32 to 104˚F) |
| Storage Temperature | -40 to 70˚C (-40 to 158˚F) |
| Relative Humidity | 5 to 90% |
| Operating Altitude | 0 to 10,000 ft, (0-3,000m) |
| Airfow | Maximum 800 CFM @ 40 ˚C / Typical 600 CFM @ 25 ˚C |
| Standards Compliance | |
|---|---|
| EMI | FCC Part 15 Class A, ICES-003 Class A, VCCI Class A |
| Safety | Safety IEC/UL/CSA/EN 60950 CE, UL, cTUVus, TUV Mark |
| Other | ROHS compliant |
| Supported Optics and Cables | ||
|---|---|---|
| Interface Type | SFP+ ports | QSFP+ ports |
| 40GBASE-CR4 | - | 0.5m-5m QSFP+ to QSFP+ |
| AOC-40G-Q-Q | 3m to 100m | |
| 40G-UNIV | 150m (OM3) / 150m (OM4) 500m (SM) | |
| 40GBASE-SR4 | - | 100m (OM3) / 150m (OM4) |
| 40GBASE-XSR4 | - | 300m (OM3) / 400m (OM4) |
| 40G-PLRL4 | - | 1km (1km 4x10G LR/LRL) |
| 40G-PLR4 | - | 10km (10km 4x10G LR/LRL) |
| 40G-LRL4 | - | 1km |
| 40GBASE-LR4 | - | 10km |
| 10GBASE-CR | SFP+ to SFP+: 0.5m-5m | QSFP+ to 4 xSFP+: 0.5m-5m |
| 10G-AOC | SFP+ to SFP+: 3m-30m | |
| 10GBASE-SRL | 100m | - |
| 10GBASE-SR | 300m | - |
| 10GBASE-LRL | 1km | - |
| 10GBASE-LR | 10km | - |
| 10GBASE-ER | 40km | - |
| 10GBASE-ZR | 80km | - |
| 10G-DWDM | 80km | - |
| 100Mb 1GbE SX, LX, TX | Yes | - |
| Interface Type | 100G CFP2 Ports | 100G QSFP Ports * |
| 100GBASE-SR10 * | 100m OM3 / 150m OM4 Parallel MMF | |
| 100GBASE-SR4 | 100m OM3 / 150m OM4 Parallel MMF | |
| 100GBASE-LR4 | 10km SM Duplex | 10km SM Duplex |
| 100GBASE-CLR4 | 1km SM duplex | |
| 100G-AOC | Yes (various lengths) | |
| 100GBASE-CR4 | Yes (various lengths) | |
* Not currently supported in EOS
Documentation:
Download the Arista 7500 Series Datasheet (PDF).
